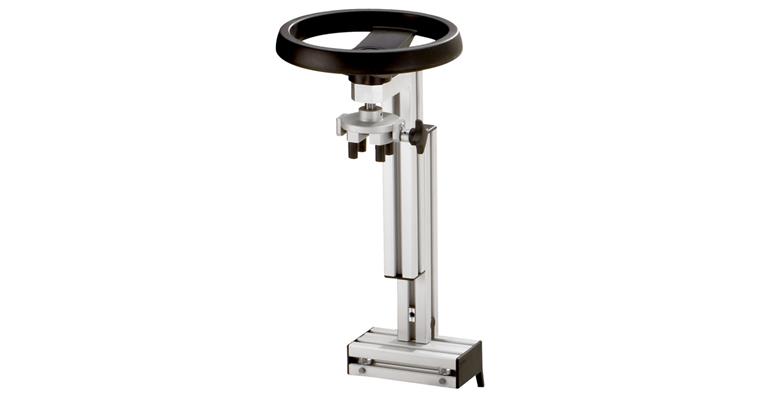

Testing attachment for actuating device (55987) for calibrating torque wrench

Testing attachment for actuating device (55987) for calibrating torque wrench

Testing attachment for actuating device (55987) for calibrating torque wrench
Item no: 1055989 101

Online price:

Available in 4-6 working days.

Application
Can be screwed onto the mechanical actuating device, art. no. 1055987. The torque screwdriver to be calibrated is inserted in the square socket of the transducer and fixed in place using the universal centre clamping device. The required force is applied to the torque screwdriver in a controlled manner using the handwheel.


Brand: STAHLWILLE
Length: 351 mm
Max. height: 593 mm
Max. torque adjustment: 10 Nm
Min. height: 442 mm
Min. torque adjustment: 1 Nm
Min./max. height: 442-593 mm
Min./max. torque adjustment: 1-10 Nm
Width: 250 mm

Manufacturer part no.: 7791-2

EAN no.: 4018754178360

Product Datasheet
