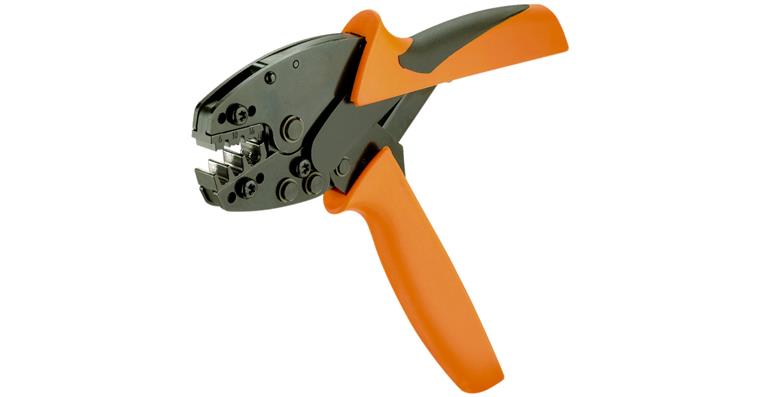

Crimping pl. PZ 16 forced lock f. wire end ferrules DIN 46228 T1+4 dia. 6-16 mm

Crimping pl. PZ 16 forced lock f. wire end ferrules DIN 46228 T1+4 dia. 6-16 mm

Crimping pl. PZ 16 forced lock f. wire end ferrules DIN 46228 T1+4 dia. 6-16 mm
Item no: 1062147 102

Online price:

Still in stock: 5

Application
For crimping wire end ferrules with or without plastic collars.

Execution
Lateral conductor insertion

Advantage
Force stop function guarantees high-quality crimping, unlocking option in the event of incorrect operation


Brand: WEIDMUELLER
Type (Pressform): PZ 16
Length: 200 mm
Suitable for min./max. diameter: 6-16 mm
Connector type: Wire end ferrules
Material of handle: 2-component plastic

Manufacturer part no.: 480772

EAN no.: 4008190035440

Product Datasheet
