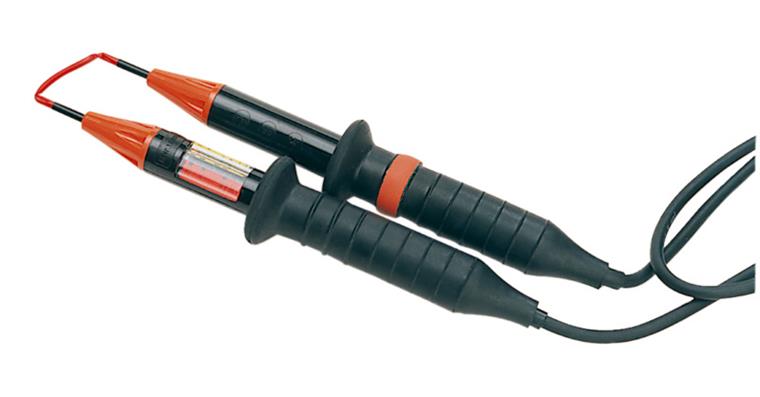

Two-pole voltage finder 120-750 volts

Two-pole voltage finder 120-750 volts

Two-pole voltage finder 120-750 volts
Item no: 1062386 201

Online price:

Still in stock: 3

Execution
  • Black Makrolon housing
  • Oil-resistant and non-flammable rubber grips with elasticated, raised finger protection
  • Underneath the rubber grips, there is a robust, double electrically insulated and heat-insulated measuring unit on one side
  • In the other housing, there is an enlarged viewing window for polarity and phase
  • Underneath the red Perbunan ring is a ring switch for switching the measuring unit on and off
  • With large, powerful neon lamp
  • Underneath the large Makrolon magnifying glass there is an illuminated, red scale for DC voltage 120-750 V
  • Yellow scale for AC voltage 120-750 V
  • Heavily insulated, oil-resistant, single-strand connection cable approx. 1 m long
  • The flattened, insulated, spring-loaded contact tips fit CEE sockets and push terminals


Brand: ---
Min./max. voltage range DC: 120-750 V/DC
Type: Voltage finders
Min./max. voltage range AC: 120-750 V/AC
Display: Visual
Phase sequence test: Yes
Polarity testing: Yes
Weight: 750 g

EAN no.: 4024496102723

Product Datasheet
