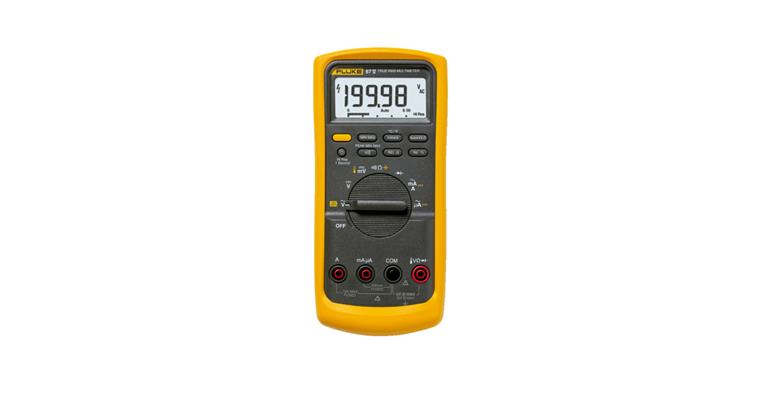

FLUKE - 87 V digital multimeter DC and AC voltage 1,000 volts

Execution

Unique function for accurate voltage and frequency measurements on speed-controlled motor drives where harmonics overlap the base frequency
Display with large digits and bright two-level backlighting
True RMS measurement of voltage and current for precise measurements of non-sine wave signals
Selectable filter for voltage and frequency measurements on motor drives
Basic accuracy of 0.05 % for DC voltage
6,000 digits, 3 3/4 places
4 1/2 places for precise measurements (20,000 digits)
Thermometer (including TC probe)
Resistance measurement, continuity and diode test
10,000 µF capacitance range for components such as motor capacitors
- Min./max./average value capture with min./max. alert for automatic detection of deviations
- Peak detection for determining short-term transients up to 250 µs
- Relative value mode eliminates interference from measurement leads for low-impedance measurements
- Automatic/manual range selection for maximum flexibility
- Touch Hold captures stable readings without influence by interfering signals
- Analogue bar graph display for fast signal changes or unstable signals
- Input Alert beeps if the input sockets are connected incorrectly
- Switch-off to extend battery life
- Battery compartment for fast battery change without damaging the calibration seal
- Removable holster, holder for measurement leads and measuring tips
- Lifetime warranty

Delivery
Measuring leads
Alligator clips
Yellow holster
Temperature probe
9 V battery (installed)
CD-ROM (user manual, technical information and operating instructions)

Notes
For replacement batteries, see art. no. 1039900 405.

Brand: FLUKE
Measuring accuracy: +/- 0.5 %
Min./max. test voltage (DC): 10 µV-1000 V
Min./max. test voltage (AC): 0.1 mV-1000 V
Min./max. alternating current of measuring range: 0.1 µA-10 A
Min./max. direct current of measuring range: 0.01 µA-10 A
Continuity testing: Yes
Diode testing: Yes
Min./max. electrical-resistance measuring range: 0.1 Ohm-50 MOhm
Min./max. frequency: 0.00001 / 200 kHz
Min./max. temperature measuring range: -200 to 1090 °C
Overvoltage protection category: CAT III/1000 V | CAT IV/600 V
Length x width x height: 201 x 98 x 52 mm
Display: 6000 digits
EN standard: 61010-1 (VDE 0411-1)
Height: 52 mm
Length: 201 mm
Max. direct current of measuring range: 10 A
Max. frequency: 200 kHz
Min. direct current of measuring range: 0,01 µA
Min. frequency: 0,01 Hz
Width: 98 mm
Max. alternating current of measuring range: 10 A
Max. capacitor capacity: 9999 µF
Max. test voltage (AC): 1000 V
Max. test voltage (DC): 1000 V
Min. alternating current of measuring range: 0,1 µA
Min. capacitor capacity: 0,01 nF
Min. test voltage (AC): 0,1 mV
Min. test voltage (DC): 10 µV
