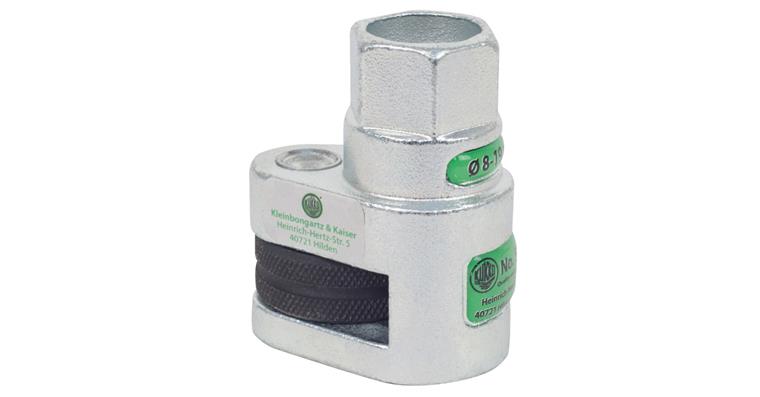

Stud bolt inserter and extractor size 3 for bolts 18-25 mm

Stud bolt inserter and extractor size 3 for bolts 18-25 mm

Stud bolt inserter and extractor size 3 for bolts 18-25 mm
Item no: 1078020 103

Online price:

Available in 13-15 working days.

Application
For stud bolts with right-hand and left-hand threads.

Execution
  • Hardened and heat-treated
  • The stud bolt is securely clamped against the internal teeth by an eccentric knurling wheel with a groove
  • Operated by open-ended wrench or box-end wrench


Brand: KUKKO
Min./max. clamping width: 18-25 mm
Min. clamping width: 18 mm
Max. clamping width: 25 mm
Max. clamping width (inches): 1 in
Min. clamping width (inches): 3/4 in
Min./max. clamping width (inches): 3/4-1 in
Size: 3
Type: 50-3
Width across flats: 36 mm

Manufacturer part no.: 019418

EAN no.: 4021176019418
