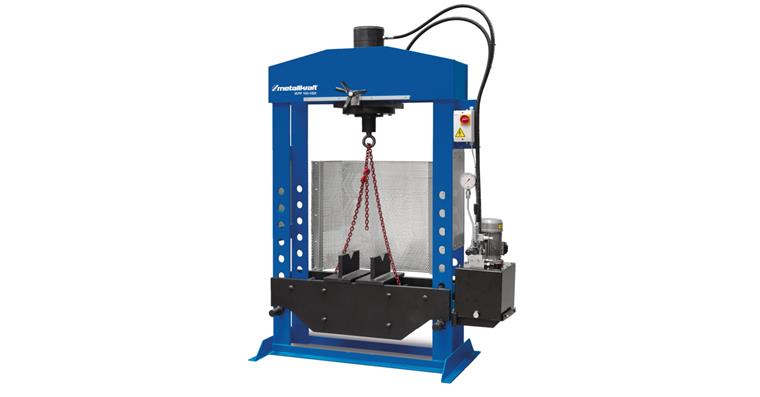

Hydraulic workshop press WPP 100 HBK pressing force 100 t

Hydraulic workshop press WPP 100 HBK pressing force 100 t

1080751104 Hydraulic workshop press WPP 100 HBK pressing force 100 t
Item no: 1080751 104

Online price:

Availability on demand

Application
For installation and straightening work as well as for workpiece tests or the pressing in/out of bearings and other components. Ideal for technical workshops, repair facilities and technical training institutions.

Execution
  • Heavy-duty, hydraulic workshop press with movable piston and two piston feed speeds
  • Pressure control by means of the throttle screw
  • Manometer for pressure display
  • Heavy-duty machine frame welded from steel profiles to absorb the pressure force of the cylinder
  • The hydraulics work extremely precisely in both electric and manual operation
  • Adjustment of the cylinder via toothed rack on the handwheel
  • Heavy-duty and robust welded design
  • Quality: Made in Europe

Advantage
  • Comfortable and clear operation of the hydraulic unit
  • Sturdy frame design and also flatter
  • Quick and easy adjustment of the cylinder via toothed rack and handwheel
  • Simple table height adjustment with the help of the hydraulic cylinder and fastening bolt

Notes
Extensive range of accessories

Brand: METALLKRAFT
Model: WPP 100 HBK
Clear width: 1030 mm
Clear height: 1000 mm
Height: 2280 mm
Operating type: Automated
Length: 1600 mm
Motor output: 1,5 kW
Piston stroke: 320 mm
Tank contents: 30 l
Width: 850 mm

Manufacturer part no.: 4013100

EAN no.: 4036351205449

Product Datasheet
