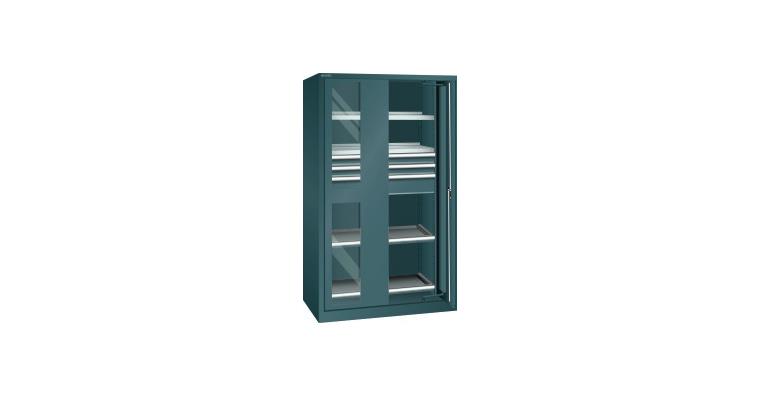

Schwerlastschrank mit 2 Sichtfenster-Einschwenktüren 1146x690x1950mm RAL 7016

Schwerlastschrank mit 2 Sichtfenster-Einschwenktüren 1146x690x1950mm RAL 7016

1085187109 Schwerlastschrank mit 2 Sichtfenster-Einschwenktüren 1146x690x1950mm RAL 7016
Item no: 1085187 109

Online price:

Availability on demand

Execution
  • Housing load capacity of up to 1,500 kg ensures maximum stability
  • Individual drawer locks provide a high level of security while preventing tipping in heavy-duty cabinets with retractable doors
  • Secure locking with retractable doors, winged doors or roller shutters and intelligent locking systems
  • Optimal overview through UV-resistant, shatterproof acrylic glass viewing window
  • High load-bearing capacity of 160 kg per adjustable shelf, 200 kg per drawer/pull-out shelf
  • Maximum user comfort due to quick access to all stored goods, especially thanks to the retractable doors or smooth-running roller shutters with user-friendly push handle
  • Closed housing with impact and wear-resistant surface provides outstanding protection against dirt, liquids and mechanical stress
  • The flexible installation and modification of drawers, pull-out shelves and adjustable shelves in the 25 mm grid allows the cabinet to be adapted to accommodate new stored goods at any time

Advantage
Housing load capacity up to 1,500 kg

Notes
Max. installation height for drawers and pull-out shelves: 1,400 mm of the housing opening

Brand: LISTA
Depth: 690 mm
Width: 1146 mm
Number of shelves: 2
Height: 1950 mm
Door design: Swing doors with viewing window
Clear height: 1830 mm
Housing height: 1950 mm
Number of fully extendible shelves: 2
Load-carrying capacity per shelf: 160 kg
Number of drawers: 3
Drawer front height: 2 x 75 mm | 1 x 150 mm
Drawer width (inner dimension): 918 mm
Drawer depth (inner dimension): 459 mm
Load-carrying capacity per drawer: 200 kg
With partition wall: No
Central locking: Yes
Opening/closing system: Key Lock
Material: Sheet steel
Drawer lock: Single lock right
Colour of front: Anthracite grey RAL 7016
Surface: Powder-coated
Cabinet colour: Anthracite grey RAL 7016
LISTA unit: 54 x 27 E
Material of shelf: Steel plate

Manufacturer part no.: 59.542.200

EAN no.: 4047417520925
