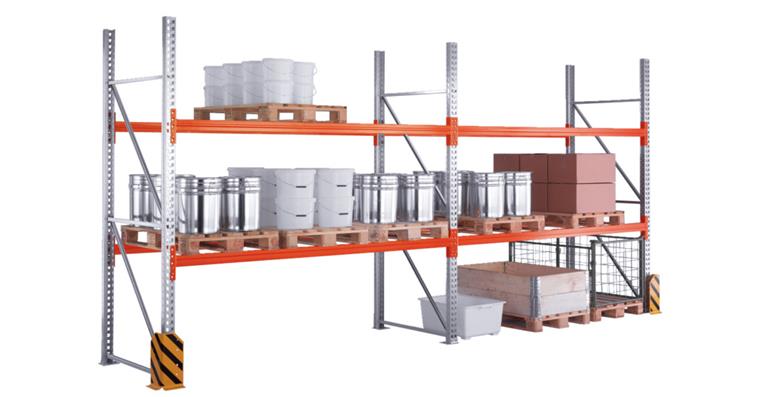

Pallet basic rack with 4 storage levels strut 100/20 HxLxD 4400x2700x1100 mm

Pallet basic rack with 4 storage levels strut 100/20 HxLxD 4400x2700x1100 mm

1085552303 Pallet basic rack with 4 storage levels strut 100/20 HxLxD 4400x2700x1100 mm
Item no: 1085552 303

Online price:

Availability on demand

Execution
  • Modern, well-engineered pallet shelving system for storing light and moderately heavy pallets or single goods, lengthways or crossways storage possible
  • 4 hook-clasps in 50 mm grid height-adjustable
  • Closed box-type profiles ensure high stability
  • Racks consist of cold-formed profiles screwed to the bracing on site
  • Galvanised rack, in RAL 5010 gentian blue upon request, struts in RAL 2001 red-orange

Delivery
Incl. floor anchors

Notes

Up to 12 metres high and accessories available on request.



Planning dimensions and load specifications

Overall width:


Basic shelf: Support length + 170 mm


Add-on shelf: Support length + 85 mm


Total depth = frame depth


Shelf load: up to max 7500 kg for a maximum unsupported length of 1000 mm


Load capacity per bay: up to max 2400 kg for a maximum unsupported length of 1000 mm


Load specifications for shelf height 1000 mm



Safety instructions:

The shelf loads apply to evenly distributed loads.


Additional shelf levels are possible up to the maximum bay load.


The specified shelf and bay loads are applicable to shelf units of at least four shelf bays and at least two strut pairs.



Brand: META
Depth: 1100 mm
Nominal length: 2700 mm
Load-carrying capacity per compartment (Tragfähigkeit pro Fach): 2340 kg
Height: 4400 mm
Stand type: MSM 85/20
Number of supporting plates (Anzahl Lagerebenen (ohne Boden)): 3 PCS
Load-carrying capacity per field: 7020 kg
Design: Shelving unit
Number of stands: 2 PCS
Beam type: HN 100/20
Quality label: RAL-RG 614/2
Material: Steel
Beam colour: Red orange RAL 2001
Surface of the frame: Zinc plated
Length: 2870 mm

Manufacturer part no.: 20093227

EAN no.: 4026212249880
