Attachment element system dimension 300 mm WxH 280x750mm RAL 5007

Versions

Item no: 1085572 114

Online price:

Catalogue price: You save:

Availability on demand

Min. order quantity: 1

Application

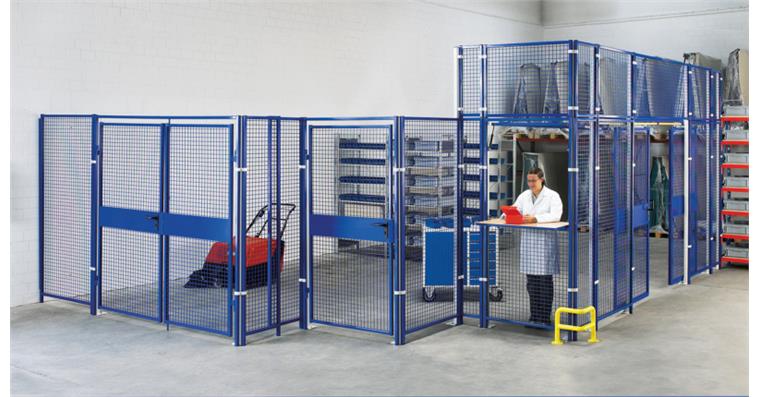

Partitioning system 9200 art. no. 1085572 101-135: Variable and versatile system for workshop and warehouse, for rapid self-assembly of barriers, storeroom walls and dividers. Modular principle allows individual elements to be combined according to your individual wishes. The 40 x 40 x 3.8 mm flat mesh, mounted in a 30 mm frame profile, meets the highest quality and transparency demands.

Execution

For raising wall, door and output elements to 2950 mm
Mounted in combination with attached posts art. no. 1085572 128-131

Notes
Other RAL paints and a hot-dip zinc-plated version for use in outdoor areas are available on request.

Brand: TTS
Height: 750 mm
Width: 280 mm
Colour: Brilliant blue RAL 5007
Surface: Powder-coated
System dimension partition wall: 300 mm

Manufacturer part no.: 9204 RAL 5007

EAN no.: 4024496126088

Product Datasheet
