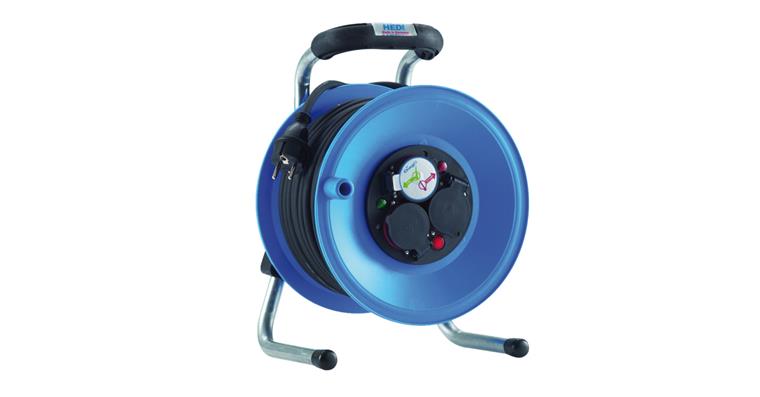

Plastic cable drum 40 m 3 sockets IPX4 cable H07RN–F 3G1.5 m diagnostics system

Plastic cable drum 40 m 3 sockets IPX4 cable H07RN–F 3G1.5 m diagnostics system

1088206202 Plastic cable drum 40 m 3 sockets IPX4 cable H07RN–F 3G1.5 m diagnostics system
Item no: 1088206 202

Online price:

Only while stocks last: 1

Application
Approved for continuous use outdoors as well as on construction and installation sites.

Execution
  • Plastic drum
  • Stable cable reel with sturdy tubular steel frame
  • Ergonomic, insulated bow handle
  • Plug parking station
  • Rotation stop switch
  • Extremely stable due to low centre of gravity
  • Splash-proof 3-way outlet with plug sealing lip
  • Thermal protection switch in accordance with VDE 0620 and Diag S

Advantage
  • Rapid fault diagnostics using the new cable drum diagnostics system (Diag S):
  • Green light on: Power supply is active. The cable drum is ready for operation. If the connected device does not work, there is an error with the connected cable or the device itself.
  • Red light on: Connected, powered devices are not working as the thermal protection switch has been triggered. As soon as the cable drum has cooled down and the thermal protection switch is pressed, the cable drum can be used again.
  • Both lights off: The cable drum is not receiving power. It is not plugged in or the connecting outlet has no power. The cable drum is defective. A specialist should be consulted for repairs.

Notes
Complies with German professional association regulations BGI 608 and BGI 600, K2.

Brand: ---
Cable length: 40 m
Number of sockets (Safety plug): 3 PCS
Cable type: H07RN-F3G1.5 mm²
Material of drum body: Plastic
Diameter: 255 mm
Colour of cable: Black
Width x height x depth: 258 x 358 x 240 mm
IP protection class: IP 44

EAN no.: 4024496129119

Product Datasheet
