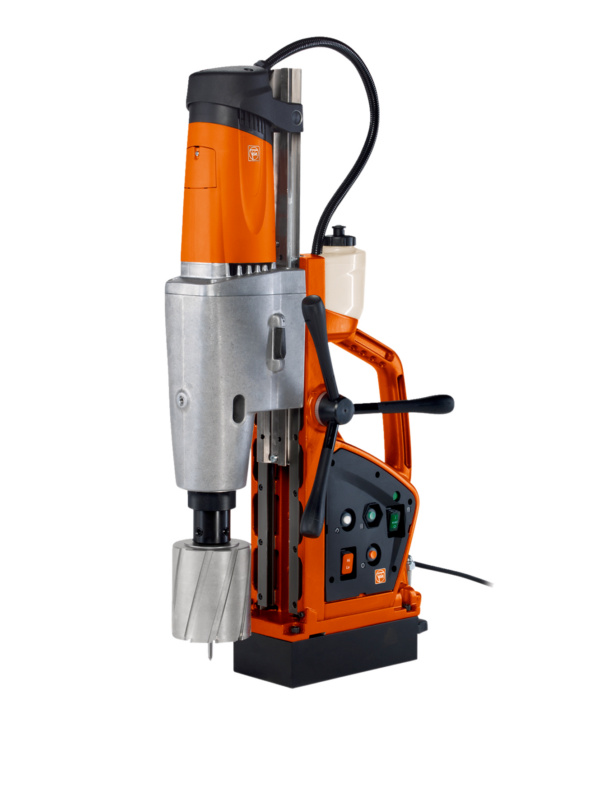

KBM 65 U electric core drill for metal 1,300 watts

KBM 65 U electric core drill for metal 1,300 watts

KBM 65 U electric core drill for metal 1,300 watts
Item no: 1090057 109

Online price:

Available in 6-8 working days.

Execution
  • MK3 interface
  • Two-speed gear unit
  • Manual feed wheel can be mounted on either side
  • Operating controls within the user's field of view.
  • Clockwise/anti-clockwise rotation
  • Magnetic retention force indicator
  • Speed-controlled tacho electronics
  • Handy magnetic core drills with carrying handle
  • For use as a mobile unit in the workshop or on construction sites
  • High-torque, high-performance motor
    • Powerful electromagnet

    • With QuickIN quick-change system for fast keyless tool changes

    • The magnetic feet with holding force of up to 18,000 N enable vertical and overhead work

    • Electronic magnetic retention force increase

    • Electronic overload protection

    • A narrow ring is machined during core drilling

    • The carbide annular cutter with integrated cooling lubricant feed/tank ensures clean cutting and a long service life

    • Suitable for overlapping drill holes

Delivery
- Drift key
- 4 m mains connection cable with Schuko plug
- Tool case
- Cooling lubricant pump/tank
- Tie-down strap
- Swarf hook
- 1 105 mm centring pin
- 1 set of keys

Notes
For carbide annular cutters, see art. no. 10959 et seq.

Brand: FEIN
Type: KBM 65 U
Tool holding device: QuickIN, MT3
Max. drilling diameter of core drill bit in steel: 65 mm
Max. drilling diameter in steel: 25 mm
Max. drilling depth: 50 mm
Idle speed 2nd gear min./max.: 260-520 U/min(rpm)
Max. idle speed: 520 rpm
Min./max. rotation speed at nominal load in 1st gear: 120-240 U/min(rpm)
Min./max. rotation speed at nominal load in 2nd gear: 260-520 U/min(rpm)
Max. rotation speed at nominal load: 520 rpm
Power input: 1300 W
Power output: 730 W
Baseplate width: 95 mm
Baseplate length: 205 mm
Max. working stroke: 145 mm
Adherence strength: 14 kN
Weight: 16,1 kg
Included in delivery: - Drift key
- Mains power cable 4 m with Schuko plug
- Tool case
- Cooling lubricant pump/tank
- Tie-down strap
- Swarf hook
- 1 centring pin 105 mm
- 1 key set
Idle speed: 520 rpm
Idle speed 1st gear min.: 120 rpm
Idle speed 2nd gear max.: 520 rpm
Idle speed 2nd gear min.: 260 rpm
Max. rotation speed at nominal load in 1st gear: 240 rpm
Max. rotation speed at nominal load in 2nd gear: 520 rpm
Min. rotation speed at nominal load in 1st gear: 120 rpm
Min. rotation speed at nominal load in 2nd gear: 260 rpm

Manufacturer part no.: KBM 65U

EAN no.: 4014586872902
