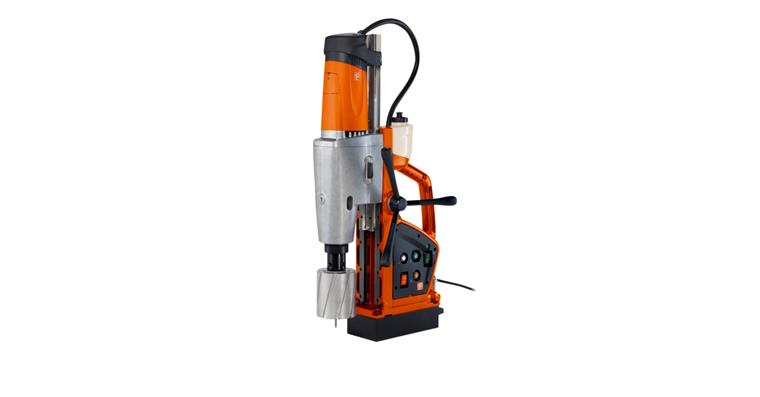

KBU 110-4 M electric core drill for metal 1,700 watts

KBU 110-4 M electric core drill for metal 1,700 watts

KBU 110-4 M electric core drill for metal 1,700 watts
Item no: 1090057 110

Online price:

Available in 6-8 working days.

Application
with extra-large stroke range for all drilling operations, such as core drilling, spiral drilling, screw tapping, countersinking and reaming

Execution
  • Mechanical 4-speed gearing
  • Clockwise/anti-clockwise rotation
  • Built-in coolant tank
  • Manual feed wheel can be positioned on either side
  • Tilt sensor
  • Torque safety clutch
  • Speed reduction

Delivery
Delivered in case with 1 coolant tank, 1 lashing strap with ratchet tool, 1 swarf hook, 2 centring pins, 1 protective cover, 1 taper drift, 1 5 mm and 6 mm Allen key, 1 additional handle


Brand: FEIN
Model: KBU110-4M
Type: KBU110-4M
Tool holding device: MT 4 Weldon 32
Max. drilling diameter of core drill bit in steel: 110 mm
Max. drilling diameter in steel: 40 mm
Max. drilling depth: 100 mm
Idle speed 1st gear min./max.: 100-190 U/min(rpm)
Idle speed 2nd gear min./max.: 160-290 U/min(rpm)
Idle speed 3rd gear min./max.: 270-500 U/min(rpm)
Idle speed 4th gear min./max.: 420-750 U/min(rpm)
Max. idle speed: 750 rpm
Min./max. rotation speed at nominal load in 1st gear: 60-120 U/min(rpm)
Min./max. rotation speed at nominal load in 2nd gear: 90-170 U/min(rpm)
Max. rotation speed at nominal load: 430 rpm
Min. rotation speed at nominal load: 60 rpm
Min./max. rotation speed at nominal load: 60-430 U/min(rpm)
Max. thread-cutting performance: M36
Max. countersunk diameter: 60 mm
Power input: 1700 W
Power output: 850 W
Baseplate width: 240 mm
Baseplate length: 120 mm
Max. working stroke: 280 mm
Adherence strength: 23,0 kN
Weight: 39 kg
With right/left-hand rotation: Yes
Cable length: 4 m
Included in delivery: Delivered in case with 1 coolant tank, 1 lashing strap with ratchet tool, 1 swarf hook, 2 centring pins, 1 protective cover, 1 taper drift, 1 Allen key 5 and 6 mm, 1 additional handle
Idle speed: 750 rpm
Idle speed 1st gear min.: 100 rpm
Idle speed 2nd gear max.: 290 rpm
Idle speed 2nd gear min.: 160 rpm
Max. rotation speed at nominal load in 1st gear: 120 rpm
Max. rotation speed at nominal load in 2nd gear: 170 rpm
Min. rotation speed at nominal load in 1st gear: 60 rpm
Min. rotation speed at nominal load in 2nd gear: 90 rpm
Rotation speed at nominal load in 3rd gear: 300 rpm

Manufacturer part no.: KBU 110-4 M

EAN no.: 4014586889740
