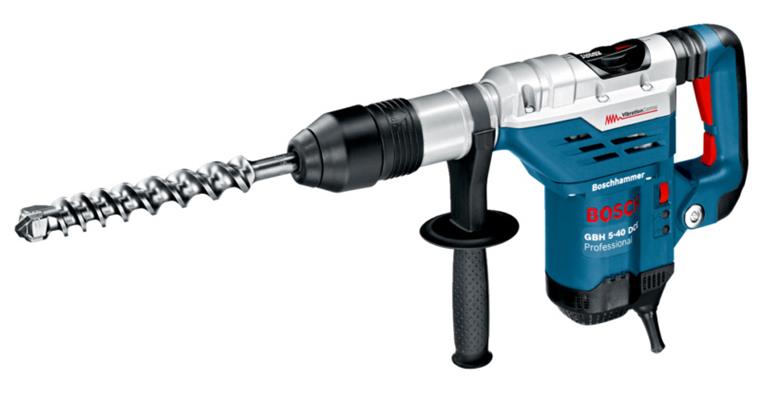

GBH 5-40 DCE rotary hammer drill SDS-max 1,150 watts 6.8 J

GBH 5-40 DCE rotary hammer drill SDS-max 1,150 watts 6.8 J

GBH 5-40 DCE rotary hammer drill SDS-max 1,150 watts 6.8 J
Video
Item no: 1090090 303

Online price:

Available in 6-8 working days.

Application
For drilling and chiselling with pneumatic striking tools in stone and concrete.

Execution
  • Overload coupling
  • Vibration Control vibration damping
  • Speed pre-selection
  • Ball joint to prevent cable breakage
  • With Turbo-Power function for extra power when chiselling
  • Automatic switch lock
  • Service display and standby display

Advantage
  • The clutch claw is unlocked and the torque is minimised to prevent abrupt blocking of the tool
  • Presse-étoupe à bille pour un maximum de liberté de mouvement et une protection contre les ruptures de câble

Delivery
Grease tube, machine cloth, additional handle, in tool case


Brand: BOSCH
Model: GBH 5-40 DCE
Max. impact energy: 8,8 J
Max. impact rate: 3050 rpm
Min./max. impact rate: 1500-3050 U/min(rpm)
Power input: 1150 W
Max. recommended drilling diameter in concrete: 40 mm
Max. core drill bit diameter: 90 mm
Tool holding device: Suitable for SDS-max
Idle speed 1st gear min./max.: 170-340 U/min(rpm)
Weight: 6,8 kg
With rubber-coated handle: Yes
With electronic feedback: Yes
With soft start: No
With chisel function: Yes
With reverse switch off: No
With restart protection: No
Idle speed 1st gear max.: 340 rpm
Idle speed 1st gear min.: 170 rpm
Included in delivery: - Tool case
- Additional handle
- Machine cloth
- Grease tube
Type: GBH 5-40 DCE

Manufacturer part no.: GBH 5-40 DCE

EAN no.: 3165140461214

Product Datasheet
