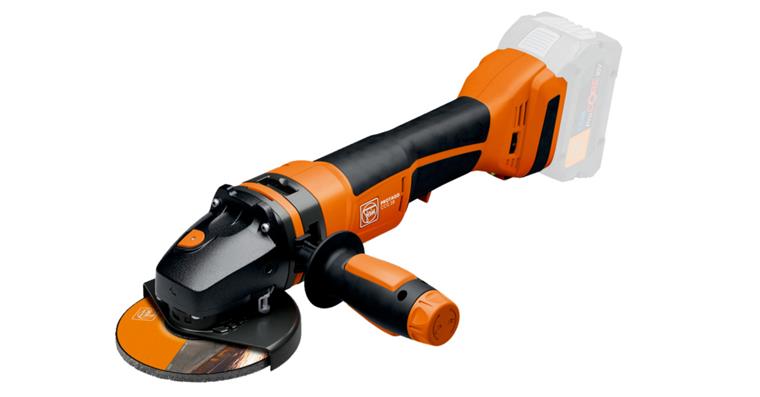

FEIN - Akku Winkelschleifer Typ CCG 18-125-10 PD-SEC AS Ø125mm Solo

Execution

Maximum user protection by combining a variety of safety features. Reduces accidents that are often caused by incorrect operation or negligence. Optimal performance, safe handling, perfect ergonomics and easy operation in any work situation.
Comprehensive user protection thanks to two-hand operation with AutoStop (dead man's switch) and permanently mounted additional handle, non-removable protective cover as well as kickback monitoring, soft start function, restart protection, electronic overload protection and braking function.
The proven, highly reliable FEIN PowerDrive brushless motors guarantee maximum service life. Fully enclosed motor housing protects the motor from aggressive ceramic and mineral dusts. Dust-protected, separate motor electronics in the grip area.
30 % higher efficiency than comparable universal motors with an input power of 1,080 W. Maintenance-free motor with innovative cooling fins for optimum cooling, including temperature monitoring. Smooth operation and low vibration thanks to the independently mounted motor decoupled from the housing and four additional vibration dampers.
Compatible with all 18 V AMPShare ProCORE batteries and chargers for even greater power and flexibility. Also suitable for 18 V Bosch Professional cordless devices. COOLPACK 2.0 technology provides 135 % longer battery life for extended operating times. State-of-the-art cell technology and intelligent battery management provide 87 % more power than conventional batteries. ProCORE Li-ion rechargeable battery with high-power cells, state-of-charge indicator and Electronic Cell Protection (ECP). ECP protects the rechargeable battery against overload, overheating and deep discharge.
Optimal performance, safe handling, perfect ergonomics and easy operation in any work situation. Delivers the same performance as an equivalent 1,080 W corded grinder.
Safe guidance in any working situation thanks to an additional handle that can be adjusted in 6 positions.
Short setup times thanks to tool-free assembly and adjustment options such as setting the protective cover, installing the cover for cutting tasks or changing the consumables using quick-action clamping nuts.
Ideal for any application. Optimal rotation speeds, designed for a range of abrasives and materials via continuous, electronic speed preselection.
Effortless work thanks to slim size, compact design and low weight with good balance. Well-equipped for any application. Working on the go with the L-BOXX system.

Delivery
1x protective cover for cutting tasks
1x tool-free quick-action clamping nut
1x key
1x plastic tool case (L-Box 238)

Brand: FEIN
Washer diameter: 125 mm
Battery included in delivery: No
Battery voltage: 18 V
Max. idle speed: 8500 rpm
Motor design: Brushless motor
Weight: 2,3 kg
Thread dimension of spindle: M14
With dead man function: Yes
With speed control: Yes
With soft start: Yes
With overload protection: Yes
With disc brake: Yes
With restart protection: Yes
With quick clamping system: Yes
With working lights: No
With reverse switch off: Yes
Min./max. idle speed: 2500-8500 U/min(rpm)
Noise level: 91 dB
Sound-pressure level: 80 dB
With speed pre-selection: Yes

Akku Winkelschleifer Typ CCG 18-125-10 PD-SEC AS Ø125mm Solo

Akku Winkelschleifer Typ CCG 18-125-10 PD-SEC AS Ø125mm Solo

Description

Technical data

More details
