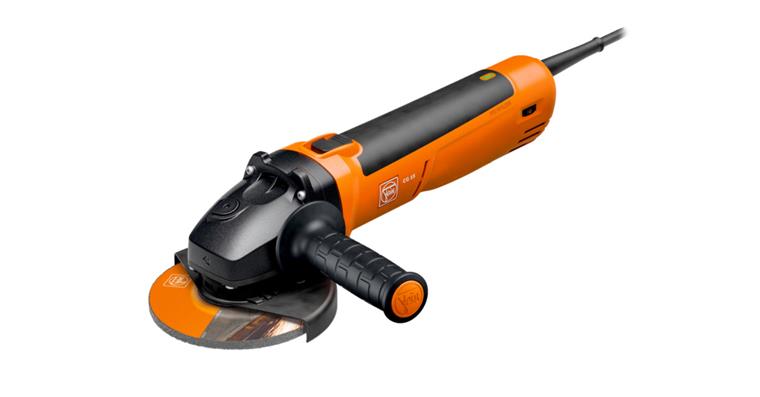

FEIN - Winkelschleifer CG 15-125 BL Ø125 mm 1.500 Watt

Application
Staubresistenter, leistungsstarker, wartungsarmer und langlebiger Compact-Winkelschleifer mit bürstenlosem FEIN PowerDrive Motor für effektive Schleif-, Trenn- und Entgratarbeiten im harten Arbeitsumfeld.

Execution

Maximale Lebensdauer dank bürstenlosem FEIN PowerDrive Motor mit komplett geschlossenem Motorgehäuse und separat verbauter Motorelektronik.
Optimaler Schutz des Motors vor aggressiven keramischen und mineralischen Stäuben und dadurch Reduktion von Ausfallzeiten und Wartungskosten.
Optimale Kühlung und Temperaturüberwachung.
Nur 2,2 kg Gewicht bei einer Abgabeleistung von 1 050 W für ein hervorragendes Gewichts-Leistungs-Verhältnis.
Im Lieferumfang enthaltene Schnellspannmutter für werkzeuglosen Wechsel von Schleifmitteln in Sekunden.
Neuer Anti-Vibrationshandgriff erhöht die Grifffestigkeit um bis zu 16 % im Vergleich zu herkömmlichen Handgriffen. Zusätzlich werden auftretende Vibrationen minimiert.
Ermüdungsarmes Arbeiten durch ein schlankes Umgreifmaß, kompakte Bauweise und geringes Gewicht mit guter Balance.
Ausstattung: Bremse, Sanftanlauf, Wiederanlaufschutz, Blockierüberwachung, elektronischer Überlastschutz, elektronische Drehzahlvorwahl, Rückschlagkontrolle

Delivery
Winkelschleifer
Schutzhaube
werkzeuglose Schnellspannmutter
Anti-Vibrationshandgriff
Schlüssel
Schutzabdeckung für Trennarbeiten

Brand: FEIN
Washer diameter: 125 mm
Power input: 1500 W
Power output: 1050 W
Max. idle speed: 9000 rpm
Motor design: Brushless motor
Weight: 2,3 kg
Thread dimension of spindle: M14
Cable length: 4 m
With speed pre-selection: Yes
With soft start: Yes
With reverse switch off: Yes
With overload protection: Yes
With disc brake: Yes
With restart protection: Yes
Min./max. idle speed: 3800-9000 U/min(rpm)
Noise level: 100 dB
Sound-pressure level: 92 dB

Winkelschleifer CG 15-125 BL Ø125 mm 1.500 Watt

Winkelschleifer CG 15-125 BL Ø125 mm 1.500 Watt

Description

Technical data
