Conditioning unit FU 602-10 flow rate 1,750 l/min filter Cellpor 5 µm fine

Conditioning unit FU 602-10 flow rate 1,750 l/min filter Cellpor 5 µm fine

Conditioning unit FU 602-10 flow rate 1,750 l/min filter Cellpor 5 µm fine
Item no: 1092423 202

Online price:

Available in 5-7 working days.

Execution
Consisting of filter pressure regulator and pneumatic lubricator

Advantage
Correct pressure settings and atomised oil ensure a long service life for various pneumatic tools and controls.

Delivery
Incl. plastic container with drain valve for filter and plastic container for lubricator.


Brand: RIEGLER
Connection thread: G 3/8 inch
Container volume, filter: 28 cm³
Container volume, lubricator: 40 cm³
Width x height: 104 x 243 mm
Condensate drain: Semi-automatic
Cylinder diameter: 104 mm
Filtration grade: 5 µm
Flow capacity: 1750 l/min
Length: 226 mm
Length 2: 96 mm
Manometer display: 0-16 bar
Material of bins: Polycarbonate
Material of connection thread: Die-cast zinc
Material of filter: Cellpor (PE)
Material of gasket: Nitrile butadiene rubber (NBR)
Material of housing: Polyamide 66 GF60
Material of membrane: NBR (Nitrile Butadiene Rubber)
Max. inlet pressure: 16
Max. pressure control range: 10 bar
Max. temperature conditions: 50 °C
Min. inlet pressure: 1.5
Min. pressure control range: 0,5 bar
Min. temperature conditions: -10 °C
Type: FU 602-10

Manufacturer part no.: FU 602-10

EAN no.: 4047322600996

Product Datasheet
Versions
loading
Keywords: Druckluft Wartungseinheit,Pneumatik-Wartungseinheit,Pneumatik Wartungseinheit,Pneumatikwartungseinheit,Druckluftwartungseinheit Druckluft Wartungseinheit,Druckluftwartungseinheit,Druckluft-Kompressoren,Kompressoren,

You might also be interested in this

  • Conditioning unit FU 601-10 flow rate 1,750 l/min filter Cellpor 5 µm fine
  •
    Digital 3-point internal quick probe IP 67 type L285P3 measuring range 85-105 mm
  •
    Non-woven abrasive disc for mottlers synthetic corundum dia. 60 mm grit 260
  •

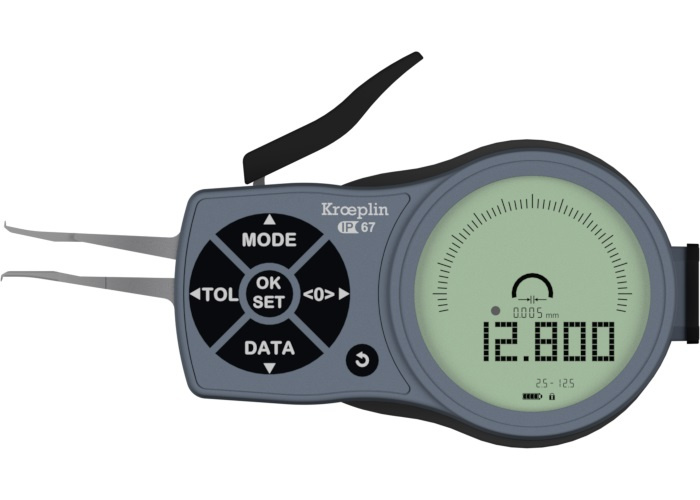

    Digital internal quick probe deg. of protect. IP 67 type L102 MR 2.5-12.5 mm
  •
