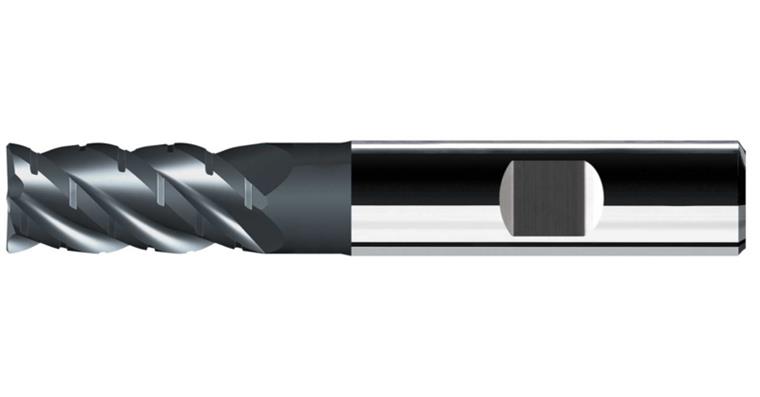

SC roughing cutter MTC w.chip br.+clear.TiAlN 45° normal HB shank T=4 dia. 20 mm

SC roughing cutter MTC w.chip br.+clear.TiAlN 45° normal HB shank T=4 dia. 20 mm

SC roughing cutter MTC w.chip br.+clear.TiAlN 45° normal HB shank T=4 dia. 20 mm
Item no: 1097016 160

Online price:

Available for immediate delivery

Application
For universal use up to 1300 N/mm²

Execution
  • Normal
  • With clearance
  • Chip breakers for short chips
  • Extremely soft cutting geometry
  • With eccentric undercut

Advantage
Also very well suited to trochoid milling

Notes
Also for milling hardened steels up to 55 HRC.

Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 20 mm
Cutting edge length: 38 mm
Clearance length: 54 mm
Length: 104 mm
Clearance diameter: 19,5 mm
Shank diameter: 20 mm
Number of cutting edges (Z): 6 PCS
Twist angle: 45° (right)
Type: UNI
Construction length: Normal
Cutting direction: Right-hand cutting
fz steel 1000: 0,075 mm
