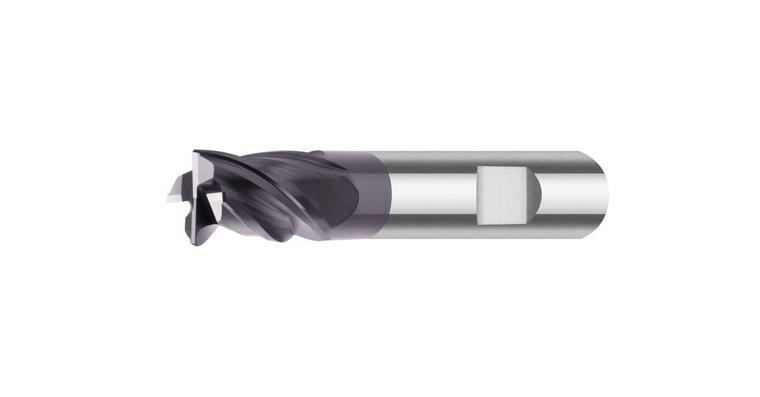

SC HPC mill cutter UNI short Z4 DIN 6535 HB TiAlN dia. 16 mm

SC HPC mill cutter UNI short Z4 DIN 6535 HB TiAlN dia. 16 mm

1097016805 SC HPC mill cutter UNI short Z4 DIN 6535 HB TiAlN dia. 16 mm
Item no: 1097016 805

Online price:

Only while stocks last: 5

Application
For universal use up to 1300 N/mm²

Execution
With centre cutting


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 16 mm
Cutting edge length: 22 mm
Length: 82 mm
Shank diameter: 16 mm
Edge protection chamfer length: 0,30 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: UNI
Construction length: Short
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,090 mm

Versions
