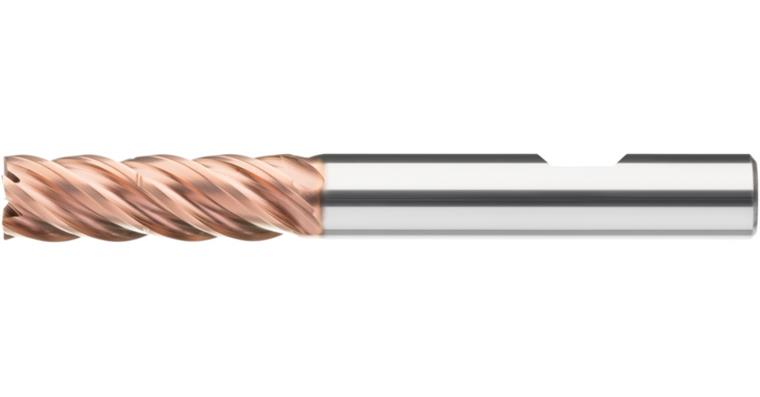

ATORN solid carbide TVC end mill ULTRA M, D 10.0x32x35x80 mm teeth=5 HB shaft

ATORN solid carbide TVC end mill ULTRA M, D 10.0x32x35x80 mm teeth=5 HB shaft

ATORN solid carbide TVC end mill ULTRA M, D 10.0x32x35x80 mm teeth=5 HB shaft
Item no: 1016668 110

Online price:

Available in 6-8 working days.

Application
The TVC end mills are optimally suited for processing with modern milling strategies. Cutting edge lengths of 3-5xD, reinforced cores and specially developed chip breaker geometries allow high working depths with maximum process reliability.

Execution
  • solid carbide ultra-fine grain
  • straight shank in line with DIN 6535 HB
  • ULTRA M-coated
  • centre cutting and edge protection chamfer
  • 3xD design with clearance
  • special chip breakers for short chips
  • uneven twist angle


Brand: ATORN
Cutting material: SC
Surface: ULTRA M
Type: VA
Number of cutting edges (Z): 5 PCS
Twist angle: 40°
Tool holding device: HB parallel shank
Construction length: Long
Cutting edge diameter: 10 mm
Cutting edge length: 32 mm
Clearance length: 35 mm
Length: 80 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 9,7 mm
Shank diameter: 10 mm
fz stainless steel: 0.11
Overall stainless steel suitability: 1
fitness not iron total: 3
fitness Titan/Nickel/Super total: 2

ATORN-No.: 11263749

EAN no.: 4050293417715

Product Datasheet Datasheet cutting values
