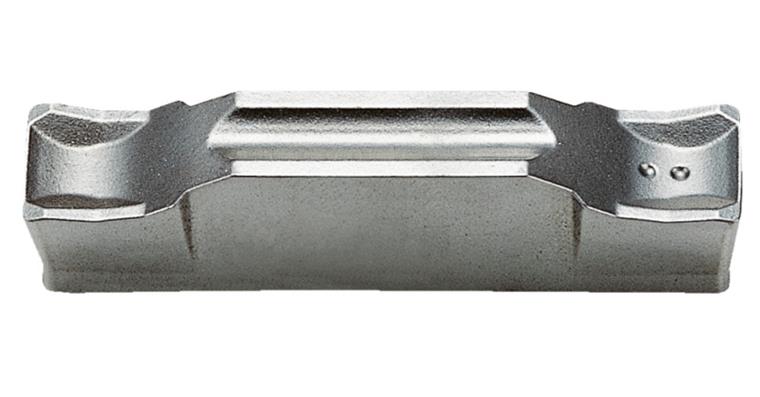

Cutting insert TDC 2 H 20 chip former C 2 cutting edges for cat. no. 18710-24

Cutting insert TDC 2 H 20 chip former C 2 cutting edges for cat. no. 18710-24

Cutting insert TDC 2 H 20 chip former C 2 cutting edges for cat. no. 18710-24
Item no: 1018747 101

Online price:

Available for immediate delivery

Application
For recessing blades and clamp holder art. no. 1018710-1018724.

Execution
Double-edged, with chip former type C

Notes
(1) = neutral
(2) = left
(3) = right
(4) = tolerance +/- 0.1 mm

Brand: LIZZARD
Type (Bezeichnung): TDC 2
Recessing width (W +/- 0.05): 2,0 mm
Immersion depth (Tmax.): 19 mm
Height (H): 4,7 mm
Length (L): 20 mm
Radius (R): 0,2 mm
Thickness (a): 1,8 mm
f min./max.: 0.1-0.4 mm/U
Nominal dimension of slot width: 2,0 mm
Carbide type: H 20
Surface: Uncoated
Material to be processed: Cast metal | Non-ferrous metal | Special alloy
Min./max. Vc in cast iron: 70-100 m/min
Min./max. Vc in non-ferrous metals: 90-300 m/min
Min./max. Vc in special alloys: 30-50 m/min

EAN no.: 4024496049592
