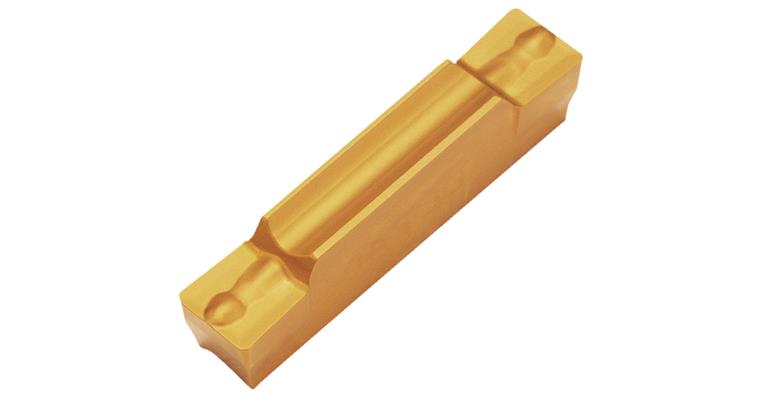

Precision cutting insert TDT3.00E-0.40 H 20 double-edged + chip former type -T-

Precision cutting insert TDT3.00E-0.40 H 20 double-edged + chip former type -T-

Precision cutting insert TDT3.00E-0.40 H 20 double-edged + chip former type -T-
Item no: 1018752 101

Online price:

Still in stock: 5

Application
For clamp holders and boring bars art. no. 1018715-1018720, 1018727-1018736 and 1018743-1018744.

Execution
Double-edged, with chip former type T

Notes
(1) = tolerance +/- 0.025 mm

Brand: LIZZARD
Type (Bezeichnung): TDT 3.00E-0.40
Width (W +/- 0.02): 3,0 mm
Height (H): 4,7 mm
Length (L): 20 mm
Radius (R): 0,4 mm
Thickness (a): 2,2 mm
f min./max.: 0.1-0.4 mm/U
Nominal dimension of slot width: 3,0 mm
Carbide type: H 20
Surface: Uncoated
Material to be processed: Cast metal | Non-ferrous metal | Special alloy
Min./max. Vc in cast iron: 70-100 m/min
Min./max. Vc in non-ferrous metals: 90-300 m/min
Min./max. Vc in special alloys: 30-50 m/min

EAN no.: 4024496050086

Product Datasheet
