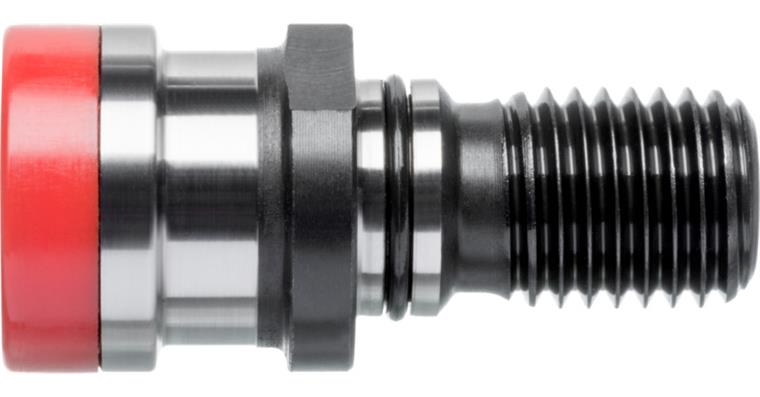

ATORN pull stud SK40 OTT ring groove without hole

ATORN pull stud SK40 OTT ring groove without hole

1021736301 ATORN pull stud SK40 OTT ring groove without hole
Item no: 1021736 301

Online price:

Available for immediate delivery

Application
For screwing into tool holders. They differ depending on the machine and spindle type and are used to fix the holders in the machine spindle.

Delivery
1x OTT SK pull stud with radial groove

Notes
Further versions available on request (specification of machine types required).

Brand: ATORN
Suitable for tool holding device: SK 40
Design: With O-ring
Outer diameter (D1): 21,10 mm
Bolt diameter (D2): 17 mm
Diameter (D): 25 mm
Length (L): 53 mm
Coolant supply: No
Angle (α/ A): 15 Degree
Length of tenon (L1): 25,10 mm

ATORN-No.: 20800019

EAN no.: 4050293200898

Product Datasheet
