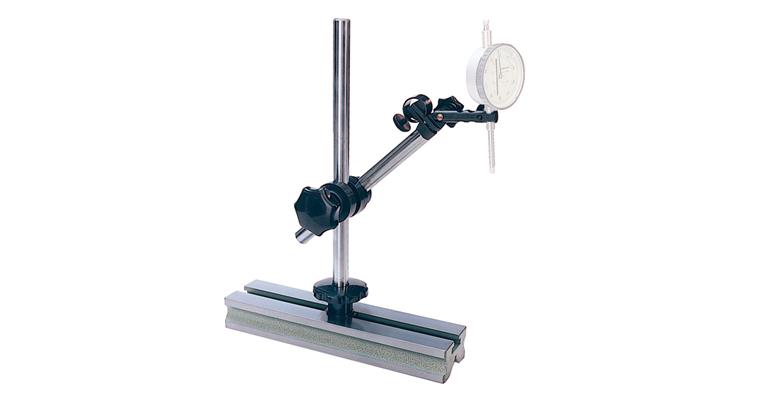

Universal measuring stands with fine adj. measuring height 300mm w/o dial gauge

Universal measuring stands with fine adj. measuring height 300mm w/o dial gauge

Universal measuring stands with fine adj. measuring height 300mm w/o dial gauge
Item no: 1034002 101

Online price:

Available in 11-13 working days.

Application
Ideal for use with lever gauge probes and small dial gauges.

Execution
  • Base is finely ground on all sides
  • Prismatic base for mounting on shafts or cylindrical bodies
  • Column can be adjusted and tightened using large hand nut on the base
  • The transverse arm can be adjusted by means of a clamping device on the column
  • For precise adjustment of the gauge, a fine adjustment is made to the transverse arm
  • Dial gauge mount 8 mm (h 6) and dovetail for small probe

Delivery
Without dial gauge

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank or dovetail guide.

Brand: LIZZARD
Overall height: 300 mm
Overhang: 180 mm
Column diameter: 16 mm
Base size: 250 x 60 x 35 mm
Measuring arm diameter: 16 mm
Measuring arm length: 180 mm
Base height: 35 mm
Base width: 60 mm
Foot length: 250 mm

EAN no.: 4024496236114
