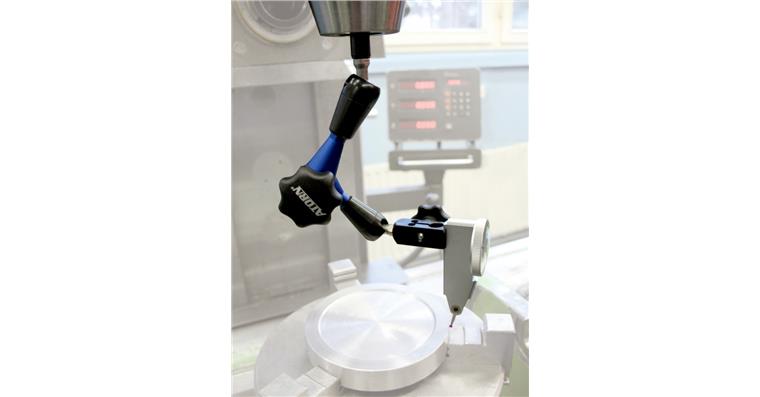

ATORN 3D articulated measuring stand with cyl. mount spigots 10 mm diameter

ATORN 3D articulated measuring stand with cyl. mount spigots 10 mm diameter

1034011101 ATORN 3D articulated measuring stand with cyl. mount spigots 10 mm diameter
Item no: 1034011 101

Online price:

Available for immediate delivery

Application
For clamping dial gauges, precision pointers, lever gauge probes etc.

Execution
  • Mechanical, maintenance-free central clamping
  • Dovetail mount and holder Ø 8 mm
  • Cylindrical mounting spigot, diameter 10 mm, for clamping in collet chucks or drill chucks

Advantage
  • Simple, quick operation
  • Highly flexible, exact positioning

Delivery
Without dial gauge and lever gauge probe


Brand: ATORN
Height: 200 mm
Operation radius: 130 mm
Retaining force: 20 N
Base diameter: 10 mm
Material: Aluminium

ATORN-No.: 31081110

EAN no.: 4050293158472

Product Datasheet
