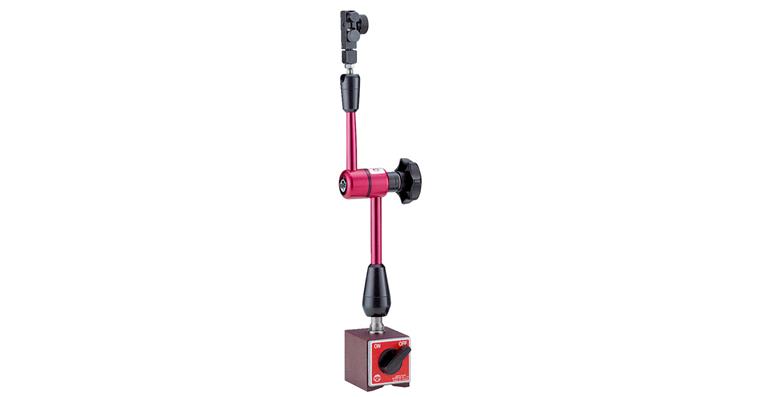

Mag. meas. stand with art. stand height=390 mm with fine adjust. approx. 785 N

Mag. meas. stand with art. stand height=390 mm with fine adjust. approx. 785 N

Mag. meas. stand with art. stand height=390 mm with fine adjust. approx. 785 N
Item no: 1034030 101

Online price:

Still in stock: 8

Application
Ideal for use with lever gauge probes and small dial gauges.

Execution
  • Clamping: mechanical
  • With articulated stand, which guarantees absolute rigidity with great mobility and a wide operating radius thanks to central clamping
  • Dial gauge location hole dia. 8 mm
  • With fine adjustment and additional dovetail mount

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank or dovetail guide.

Brand: LIZZARD
Adherence strength: 785 N
Base size: 60 x 50 x 55 mm
Operation radius: 280 mm
Height: 390 mm
Overall height: 390 mm
Base height: 55 mm
Base width: 50 mm
Foot length: 60 mm

EAN no.: 4024496081875
