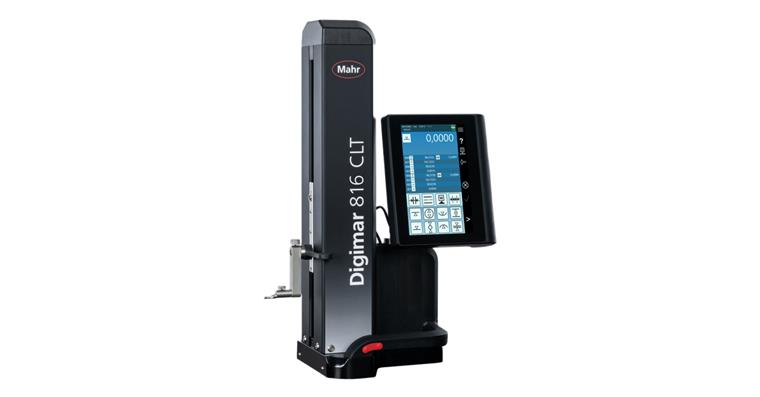

MAHR - 816 CLT Höhenmessgerät Digimar 0-350 mm

Application
For measuring external, internal, height, depth and distance dimensions, as well as diameters and reversal points in bores and shafts. In addition, for a variety of measuring functions in two coordinate directions, such as recording dynamic straightness and perpendicularity deviations

Execution

10 inch touch control panel for extremely simple, convenient operation via large operating keys
Fast and reliable execution of measurements and calculation functions
Logs can be saved directly to the device as a PDF
Wireless transfer of measurement value lists to Bluetooth printers
Transfer of measured values wirelessly or via USB using the proven and reliable MarConnect interface
Simple creation of measurement programs (via teach-in or drag and drop)
Air cushioning system for easy, smooth movement
Temperature compensation via integrated temperature sensor possible
Functions: Top/bottom probing, bar width or groove spacing incl. bar or groove centre, bore/shaft diameter incl. bore or shaft centre, reversal point of bores (top/bottom), reversal point of shaft (top/bottom), calculate spacing/symmetry, dynamic measurement functions, perpendicularity measurement, straightness measurement

Advantage

Future-proof due to update capability
Additional measuring device can be connected with MarConnect USB interface

Delivery
1x height measuring device incl. operating and display element
1x carrier
1x indicator contact point
1x setting block
USB cable
Operating instructions
Mains charger
Protective cover
Calibration certificate

Brand: MAHR
Calibration Group: M
Type: Digimar 816 CLT 350 mm
Length measuring range: 350 mm
Min./max. application area with standard gauge slide carrier: 0-520 mm
Digit increment (can be pre-selected): 0.01 mm | 0.005 mm | 0.001 mm | 0.0005 mm | 0.0001 mm
Height gauge error limit: 2.0 + L/400 (L in mm)
Repeat accuracy of drill hole: 0,002 mm
Repetition accuracy, level: 0,001 mm
Perpendicularity tolerance (front): 5 µm
Min./max. measurement force: 0.8-1.2 N
Max. battery operating time: 14 h
Data transmission type: Wireless | USB
With air cushion equipment: Yes
Weight: 22 kg
Max. application area with standard gauge slide carrier: 520 mm
Max. measurement force: 1,2 N
Min. application area with standard gauge slide carrier: 0 mm
Min. measuring force: 0,8 N
