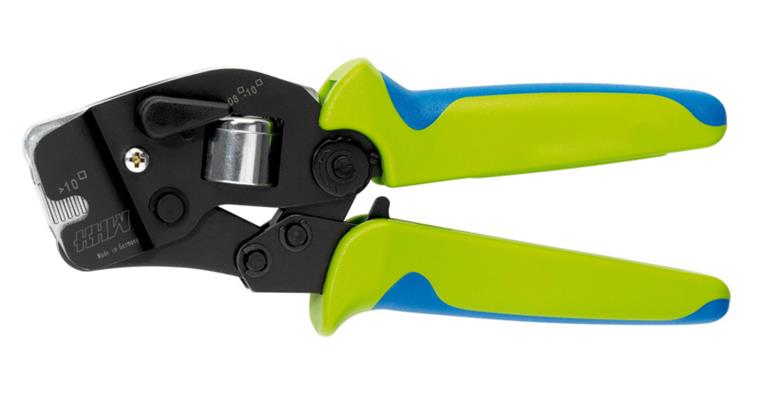

Wire end ferrule pliers front crimping for wire end ferrules up to 16 mm2

Wire end ferrule pliers front crimping for wire end ferrules up to 16 mm2

Wire end ferrule pliers front crimping for wire end ferrules up to 16 mm2
Item no: 1062148 102

Online price:

Available for immediate delivery

Application
DIN-compliant crimping connections of wire end ferrules. Universal use, easy to use in confined spaces.

Execution
  • Square crimping profile with four profiled crimp surfaces. Wire end ferrules inserted in the front. Lever ratios to minimise effort, adjustable crimping pressure, adjustment lever for pre-selection of crimping areas. Black oxide, with ergonomic 2-component handles
  • Frontale Einführung der Aderendhülsen bis max. 16,0 mm² möglich – vorteilhaft bei kurzen Leiterenden
  • Vorauswahl der Crimpbereiche über einen Stellhebel
  • Crimpdruck ist werkseitig präzise eingestellt (kalibriert), nachstellbar
  • Federstahl, spezialvergütet
  • Zangenkörper brüniert
  • ergonomisch geformte Zwei-Komponenten-Griffe
  • Made in Germany

Advantage
  • selbsteinstellende Anpassung auf die gewünschte Aderendhülsengröße
  • einfachste Handhabung unter beengten Platzverhältnissen
  • extrem großer Anwendungsbereich in einem Werkzeug
  • gleichbleibend hohe Crimpqualität durch Zwangsvollendung des Crimpvorganges (entriegelbar)
  • Kraftverstärkung durch Hebelübersetzung für ermüdungsarmes Arbeiten


Brand: HHW
Length: 190 mm
Suitable for min./max. diameter: 0.08-16 mm
Material of handle: Plastic

EAN no.: 4024496102112

Product Datasheet
