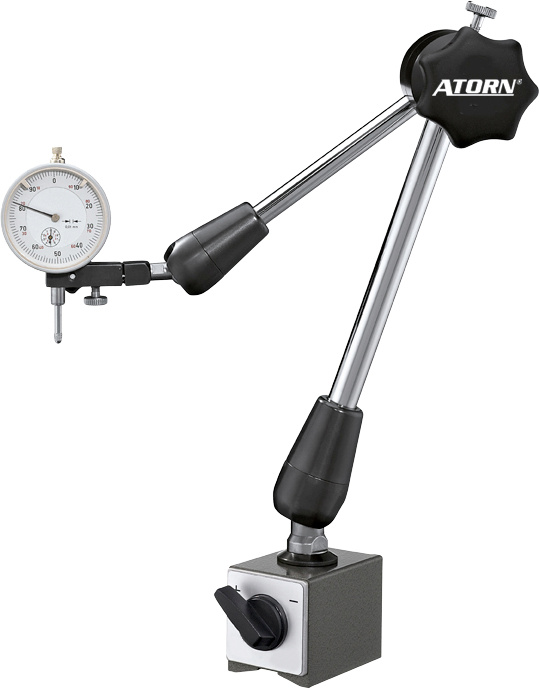

ATORN 3D art. meas. stand with central clamping, maint.-free, op. radius 630 mm

ATORN 3D art. meas. stand with central clamping, maint.-free, op. radius 630 mm

ATORN 3D art. meas. stand with central clamping, maint.-free, op. radius 630 mm
Item no: 1034011 204

Online price:

Still in stock: 2

Application
For clamping dial gauges, precision pointers, lever gauge probes etc.

Execution
  • Mechanical, maintenance-free central clamping
  • Dovetail mount and 8-mm dia. mount (6-mm dia. possible with adapter)
  • Strong adhesive magnet with prismatic base

Advantage
  • Simple, quick operation
  • Highly flexible, exact positioning

Delivery
Without dial gauge


Brand: ATORN
Height: 740 mm
Operation radius: 630 mm
Retaining force: 90 N
Adherence strength: 1500 N
Base size: 120 x 60 x 55 mm
Material: Steel

ATORN-No.: 31082500

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Nut blank for T-grooves groove nominal size 10 mm
  •
    Nut blank for T-grooves groove nominal size 16 mm
  •
    Nut blank for T-grooves groove nominal size 20 mm
  •
    Nut blank for T-grooves groove nominal size 22 mm
  •
    ATORN 3D art. meas. stand with central clamping, maint.-free, op. radius 450 mm
  •
    3D articulated measuring stand with sw. magnet approx. 1000 N op. radius 280 mm
  •

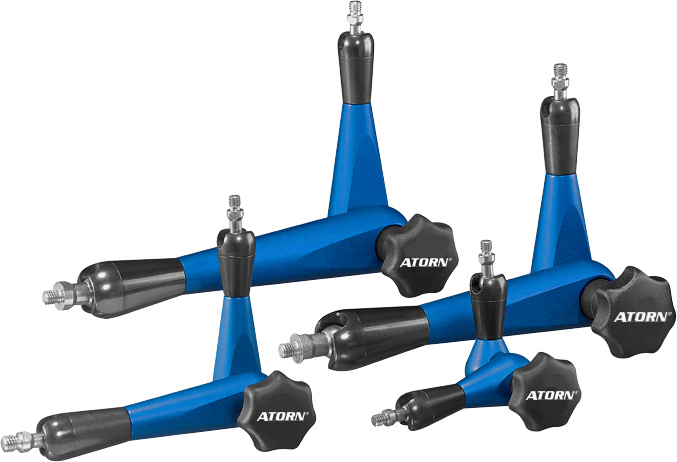

    ATORN 3D articulated arm operating radius: 130 mm
  •
