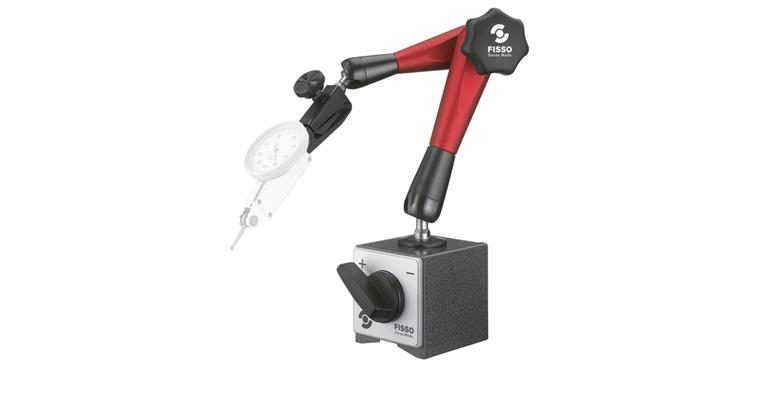

FISSO - 3D artic. meas. stand STRATO µ-LINE w. sw. mag base 60x50x55 H=317 approx. 800 N

Application
For clamping dial gauges, precision pointers, lever gauge probes etc.

Execution

With switching magnet
Incredibly simple precision fine adjustment with a high level of repeatability especially for measurements in the thousandth of a millimetre range
Kurzer Klemmweg für höchsten Bedienkomfort mit kraftvoller und dauerhafter Klemmung
Precisely positioned in no time at all
Powerful and durable clamping
Friction clamping based on a continuously variable, purely mechanical clamping system
Extension of the STRATO-LINE into the high-precision range
Short clamping path for optimum operating comfort
Central clamping handle for securing and releasing all 3 joints
Articulated stand fits precisely into the ball joint for a high level of stability
- Pre-tension prevents unwanted collapse in the loosened state to protect the measuring instruments
- Maintenance-free and durable system
- Made of steel, no play, for exact positioning of the measuring instruments as well as high measuring accuracy and repeatability
- Combined mount for dial gauges, electronic measuring probes with shank dia. 8 mm and level gauge probes with dovetail
- Maximum precision ball joints made of steel
- Red anodised arm parts made of high-quality light metal
- Micro-fine adjustment made of steel

Advantage

FISSO articulated stands can be moved easily and precisely into any desired position
Zentralspanngriff zum Fixieren und Lösen aller 3 Gelenke
Wartungsfreies und dauerhaftes System
Präzisions-Feineinstellung mit hervorragendem Einstellkomfort und hoher Wiederholgenauigkeit speziell für Messungen im Tausendstel-Millimeterbereich

Delivery
In polystyrene or cardboard box, without dial gauge/lever gauge probe

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank or dovetail guide.

Brand: FISSO
Adherence strength: 800 N
Base size: 60 x 50 x 55 mm
Operation radius: 204 mm
Overall height: 317 mm
Material: Aluminium / plastic / steel
Base height: 55 mm
Base width: 50 mm
Foot length: 60 mm

Manufacturer part no.: AP20.10

EAN no.: 7640152571909
