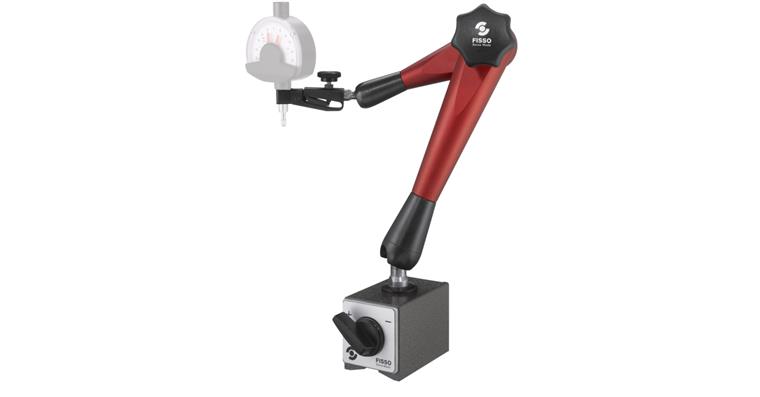

3D artic. meas. stand STRATO µ-LINE w/sw. mag base 75x50x55 H=444 approx. 1000N

3D artic. meas. stand STRATO µ-LINE w/sw. mag base 75x50x55 H=444 approx. 1000N

3D artic. meas. stand STRATO µ-LINE w/sw. mag base 75x50x55 H=444 approx. 1000N
Item no: 1034027 101

Online price:

Still in stock: 3

Application
For clamping dial gauges, precision pointers, lever gauge probes etc.

Execution
  • With switching magnet with prism base, can be switched on and off by means of a turning handle
  • Incredibly simple precision fine adjustment with a high level of repeatability especially for measurements in the thousandth of a millimetre range
  • Kurzer Klemmweg für höchsten Bedienkomfort mit kraftvoller und dauerhafter Klemmung
  • Precisely positioned in no time at all
  • Powerful and durable clamping
  • Friction clamping based on a continuously variable, purely mechanical clamping system
  • Extension of the STRATO-LINE into the high-precision range
  • Short clamping path for optimum operating comfort
  • Central clamping handle for securing and releasing all 3 joints
  • Articulated stand fits precisely into the ball joint for a high level of stability
    • Pre-tension prevents unwanted collapse in the loosened state to protect the measuring instruments

    • Maintenance-free and durable system

    • Made of steel, no play, for exact positioning of the measuring instruments as well as high measuring accuracy and repeatability

    • Combined mount for dial gauges, electronic measuring probes with shank dia. 8 mm and level gauge probes with dovetail

    • Maximum precision ball joints made of steel

    • Red anodised arm parts made of high-quality light metal

    • Micro-fine adjustment made of steel

Advantage
  • FISSO articulated stands can be moved easily and precisely into any desired position
  • Zentralspanngriff zum Fixieren und Lösen aller 3 Gelenke
  • Wartungsfreies und dauerhaftes System
  • Präzisions-Feineinstellung mit hervorragendem Einstellkomfort und hoher Wiederholgenauigkeit speziell für Messungen im Tausendstel-Millimeterbereich

Delivery
In polystyrene or cardboard box, without dial gauge/lever gauge probe

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank or dovetail guide.

Brand: FISSO
Adherence strength: 1000 N
Base size: 75 x 50 x 55 mm
Operation radius: 330 mm
Overall height: 444 mm
Material: Aluminium / plastic / steel
Base height: 55 mm
Base width: 50 mm
Foot length: 75 mm

Manufacturer part no.: AP33.10

EAN no.: 7640152571961
